0.5mm2 220V Rated Voltage PTFE Insulated Wire with Silver Coating and 11 Colors for Electronic Appliances

100
MOQ
0.5mm2 220V Rated Voltage PTFE Insulated Wire with Silver Coating and 11 Colors for Electronic Appliances
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Geleidingsmateriaal: Zilveren deklaag
Isolatiemateriaal: PTFE geïsoleerd
Nominale spanning: 220V
Type geleider: Gestrand
Draadmeter: 0.5MM2
Afscherming: Zilveren deklaag
Werktemperatuur: -60 ℃ tot +250 ℃
Nominale spanning: AC 220V
Draadmeter: 36AWG ~ 3/0AWG
Kernnummer: Enkele kern
Verpakkingslengte: 305M/Roll
Kleuropties: 11 kleuren
Temperatuurweerstand: 250 graad
Leiderweerstand: Lage weerstand
Isolatiedikte: PTFE-folie
Markeren:

0.5mm2 PTFE Insulated Wire

,

220V Rated Voltage Silver Coated Wire

,

11 Colors High Temperature Wire
Basis informatie
Plaats van herkomst: Hunan, China
Merknaam: Sanco cable
Modelnummer: Afr-250
Betalen & Verzenden Algemene voorwaarden
Productomschrijving

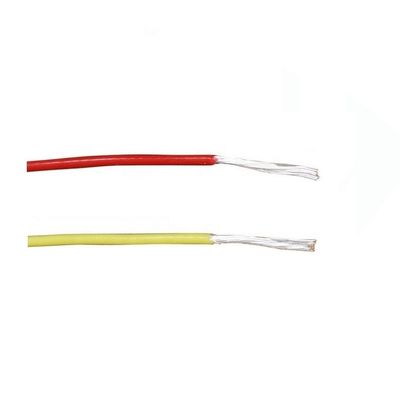

250 Degree 0.5mm² Silver Coating PTFE Insulation Wire
Product Overview
High Temperature Silver Coating PTFE Insulation Wire is an electrical wire insulated with PTFE film, offering exceptional resistance to high temperatures, chemicals, and electrical insulation properties. Ideal for demanding environments, this wire is commonly used in aerospace, automotive, and industrial applications where reliability and performance are critical.

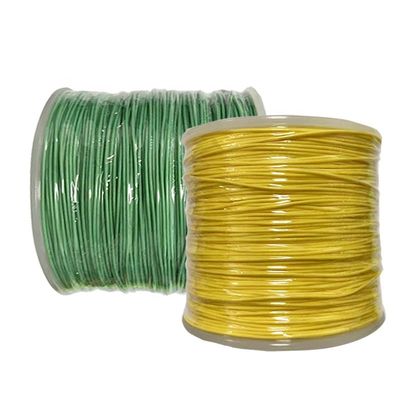

0.5mm2 220V Rated Voltage PTFE Insulated Wire with Silver Coating and 11 Colors for Electronic Appliances 0
Specifications
Application Internal wiring for electronic equipment, electrical appliances, and instruments
Conductor Silver coating copper wire
Insulation PTFE
Conductor Type Stranded
Working Temperature -60℃ to +250℃
Rated Voltage AC 220V
Wire Gauge 36awg~3/0awg
Core Number Single Core
Packing Length 305m/roll
Free Sample Yes
Key Advantages
  • Small outer diameter and lightweight design
  • Excellent flexibility and easy welding
  • High temperature resistance and anti-aging properties
  • Superior anti-interference performance
  • Available in multiple colors: black, brown, red, orange, yellow, green, blue, purple, gray, white, and transparent

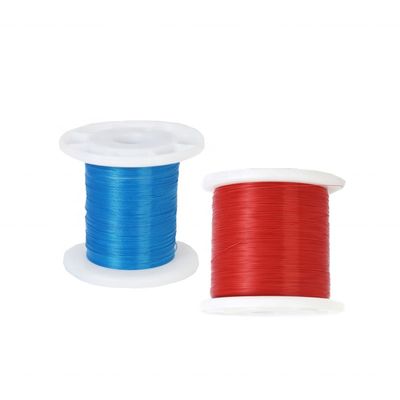

0.5mm2 220V Rated Voltage PTFE Insulated Wire with Silver Coating and 11 Colors for Electronic Appliances 1
Quality Assurance
  • Strict inspection before shipment including annealing test, tensile test, and conductor resistance test
  • 500+ sqm professional testing laboratory
  • Advanced cable testing equipment
  • Professional QC team

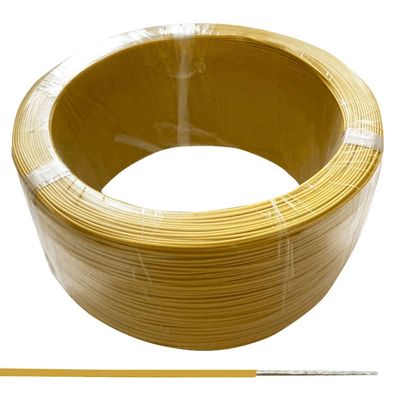

0.5mm2 220V Rated Voltage PTFE Insulated Wire with Silver Coating and 11 Colors for Electronic Appliances 2
Why Choose Our Product
  • 20+ years of special cable R&D and manufacturing experience
  • Certified by CCC, Weapons and Equipment, and ISO9001 systems
  • Supplier for China's aerospace and military programs
  • Low MOQ for custom cables
  • Free samples and design services available
  • 1-3 year warranty period

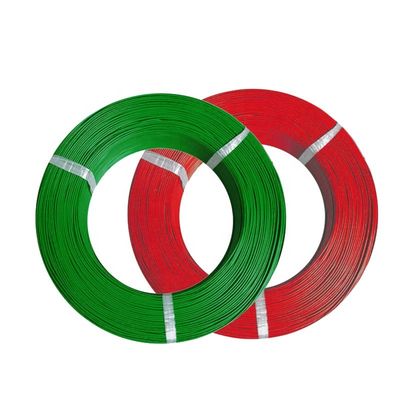

0.5mm2 220V Rated Voltage PTFE Insulated Wire with Silver Coating and 11 Colors for Electronic Appliances 3
