Name: Corrosion Resistant Oil Resistant Acid Resistant PTFE High Temperature Wire with Silver Plated Copper Conductor
Brand: Xiangtan Shenzhou Special Cable Co., Ltd
SKU: AF-250
Price: 0.60 USD
Availability: InStock

Kenmerken Galerij Productomschrijving Verzoek om een Citaat

Kenmerken

Specificaties

Geleidingsmateriaal: Verzilverd koper, kaal koper

Diameter: 22 AWG, 20 AWG, 24 AWG, 16 AWG, 18 AWG

Isolatiemateriaal: PTFE

Nominale spanning: AC600V of hieronder

Type geleider: Stranded, solide

Grootte van de enkele draad: 0,3 mm, 0,5 mm, 1,0 mm, 1,2 mm, 0,2 mm

Temperatuurbereik: -60℃~+250℃

Kernnummer: Enkele kern, twee cores, drie cores, vier cores

Buitendiameter: 2,0 mm

Isolatiedikte: 0,3 mm, 0,32 mm, 0,35 mm, 0,45 mm, 0,55 mm, 0,68 mm

D.C. Verzet: 383Ω/km, 348Ω/km, 286Ω/km, 157Ω/km, 152Ω/km, 136Ω/km, 111Ω/km, 87Ω/km, 57Ω/km, 40Ω/km, 24Ω/km, 21Ω/k

Nominale sectie: 0,05 mm², 0,06 mm², 0,08 mm², 0,1 mm², 0,12 mm², 0,14 mm², 0,15 mm², 0,2 mm², 0,35 mm², 0,5 mm², 0,8

Geleidersconstructie: 10/0.08, 7/0.10, 7/0.12, 7/0.14, 7/0.15, 30/0.07, 7/0.16, 19/0.10, 30/0.08, 19/0.12, 19/0.16, 19/0.1

Vorm: Ronde

Kleuropties: Wit, blauw, rood, zwart, geel, groen, transparant, geel/groen

Markeren:

Corrosion Resistant PTFE Wire

Oil Resistant High Temperature Wire

Acid Resistant Silver Plated Copper Wire

Basis informatie

Plaats van herkomst: Hunan, China

Merknaam: Sanco cable

Modelnummer: AF-250

Betalen & Verzenden Algemene voorwaarden

Galerij

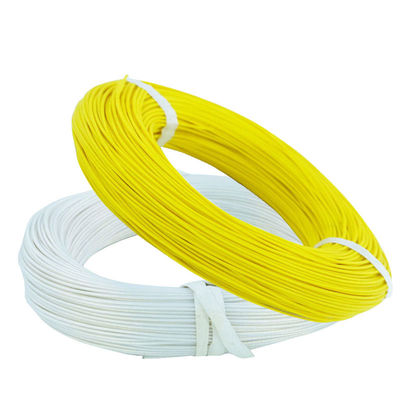

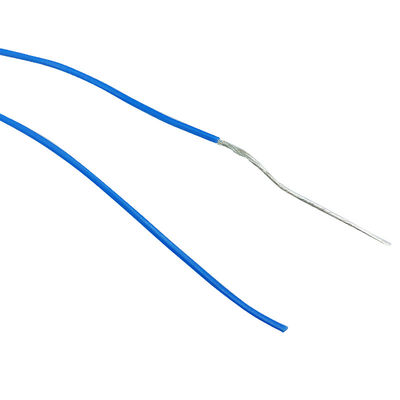

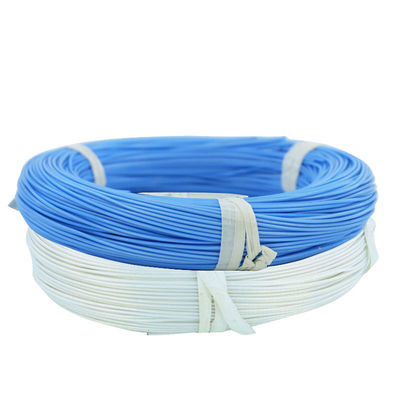

Corrosion Resistant Oil Resistant Acid Resistant PTFE High Temperature Wire with Silver Plated Copper Conductor

Productomschrijving

PTFE Extruded Silver Plated Copper High Temperature Wire

White 18AWG (19/0.26mm) PTFE Silver Plated Copper High Temperature Wire - Outer Diameter: 2.0mm

PTFE (polytetrafluoroethylene) extruded wire is manufactured through an extrusion process, offering excellent electrical insulation properties ideal for high-temperature and harsh environment applications. Commonly used in aerospace, automotive, and electrical industries.

Key Features

Excellent corrosion resistance
Resistant to oils, strong acids, alkalis, and oxidants
Superior electrical insulation capabilities
High voltage and moisture resistance
Flame-retardant and anti-aging properties
Long service life

Available Colors

Red, yellow, blue, green, white, black, orange, purple, brown

Product Types

Type	Name
AFR-200	Bare Copper wire conductor PTFE film insulated lead wire
AFR-250	Silver plated copper wire conductor PTFE film insulated lead wire
AFP	Bare Copper wire conductor PTFE film insulated screen lead wire
AFP-1	Silver plated copper wire conductor PTFE film insulated screen lead wire
AFRP-200	Bare Copper wire conductor PTFE film insulation shield lead wire
AFRP-250	Silver plated wire copper conductor PTFE film insulation shield lead wire
AFRPF-250, AFPF	Silver plated wire copper conductor PTFE film insulation PTFE film sheath shield lead wire

Specifications

Nominal Section (mm²)	Conductor Construction (No/mm)	Insulation Thickness (mm)	Outer Diameter (mm)	D.C. conductor resistance at 20ºC(Ω/km)
0.05	10/0.08	0.3	0.9	383 \| 370
0.06	7/0.10	0.3	0.9	348 \| 339
0.08	7/0.12	0.3	0.96	286 \| 280
0.1	7/0.14	0.3	1.02	157 \| 150
0.12	7/0.15 30/0.07	0.3	1.05	152 \| 145
0.14	7/0.16 19/0.10	0.3	1.08	136 \| 130
0.15	30/0.08	0.3	1.1	111 \| 105
0.2	7/0.02 19/0.12	0.3	1.2	87 \| 82
0.35	19/0.16	0.3	1.4	57 \| 54
0.5	19/0.18	0.3	1.5	40 \| 37.5
0.8	19/0.23	0.32	1.79	24 \| 23
1	19/0.26	0.35	2	21 \| 20
1.2	19/0.28	0.45	2.3	19 \| 18
1.5	19/0.32	0.45	2.5	13 \| 12
2	19/0.37	0.45	2.75	10 \| 9
2.5	37/0.30	0.55	3.2	8 \| 7
3	37/0.32	0.68	3.6	6.8 \| 6.4

Technical Specifications

Type	High-Temp 0.5mm AF250 PTFE Electric Cable Wire
Size	0.5mm², 0.8mm², 1mm², 1.5mm², 2mm², 2.5mm²
Conductor Materials	Silver Plated, Tinned Plated or Bare Copper
Conductor Type	Stranded or Solid
Insulation	ETFE, FEP, PFA, PTFE
Rated Voltage	600V or Lower
Temperature Range	250°C
Color	White, Yellow, Blue, Black, Red, Green

About Xiangtan Shenzhou Special Cable Co., LTD

A stable wire and cable supplier for China's aerospace and military sectors with 21 years of experience. We produce our own cable compounds, ensuring superior quality and competitive pricing. Our product range includes High Temperature wires, PTFE cable, FEP Cable, PFA Wire, ETFE Cable, Fluoroplastic Cables, Hook up wire, electronic cable, and Power cable. We maintain advanced production facilities and integrated management systems, collaborating with universities and research institutes to offer customized cable solutions.

Frequently Asked Questions

1. Are you a manufacturer or trading company?

We are a professional manufacturer, researching, developing and selling military and consumer cable wire and cable compounds. The company is located in Hunan Province, China.

2. What is your company's strengths?

We are a stable wire and cable supplier for China's aerospace and military with 21 years experience. We produce our own cable compounds, which allows us to maintain superior quality and competitive offers.

3. How do you guarantee your product quality?

Quality is our priority. We implement strict quality control from design and materials procurement through manufacturing and final product inspection to ensure consistent quality.

4. What's the warranty of your products?

We provide 1 year complete warranty service. If products have quality problems, we will replace or return them unconditionally.

5. How can I get the samples?

We can prepare sample orders. If the sample quantity is small and available in stock, we can provide them free of charge (with customer responsible for freight costs).
