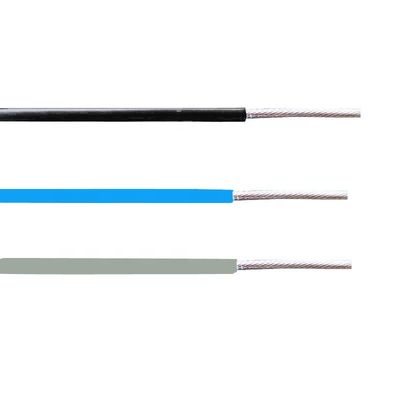

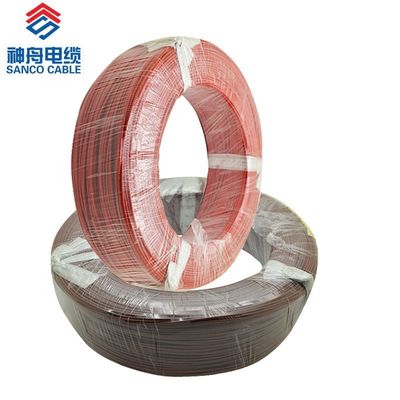

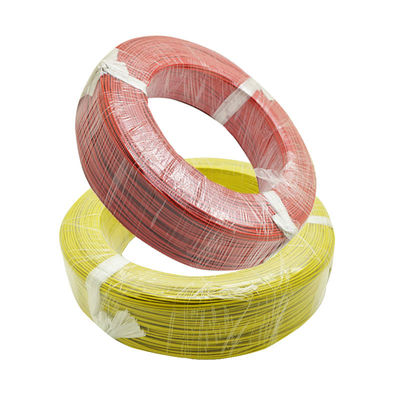

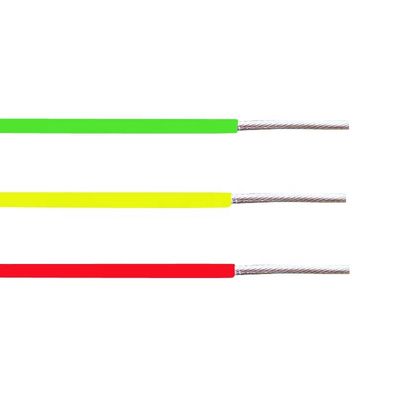

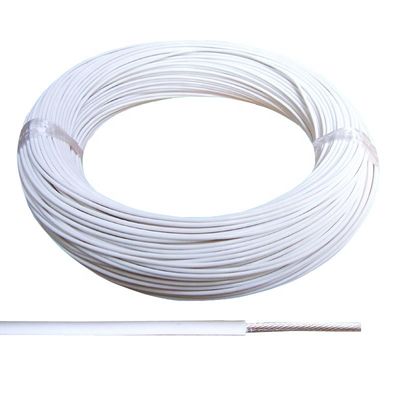

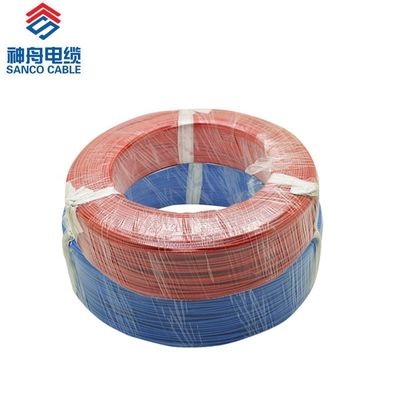

FEP Insulated Wire with Rated Voltage AC 600V Oil Resistant and Strong Acid Resistant Properties

305
MOQ
FEP Insulated Wire with Rated Voltage AC 600V Oil Resistant and Strong Acid Resistant Properties
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Materiaal geleider: Vertind koperdraad, verzilverd koperdraad
Isolatiemateriaal: FEP geïsoleerd
Dirigenttype: Vastgelopen of stevig
Nummer Core: Enkele kern, 2 kernen, 3 kernen, 4 kernen, 5 kernen
Werktemperatuur: -65°C~+200°C
Nominale spanning: AC 600V of Lager
Kleur: Zwart, wit, blauw, rood, geel, groen, transparant, geel/groen
Draadmeter: 36AWG tot 8AWG
Dwarsdoorsnede: 0,013 mm2 tot 8 mm2
Maximum OD: 0,65 mm tot 7,3 mm
Afscherming: Gedichte koperdraad Weave afgeschermd
Geleidersstructuur: 7/0,05 mm tot 133/0,28 mm
Temperatuurbereik: -65°C aan +200°C
Spanningswaarde: 鎮ㄨ鎵剧殑璧勬簮宸茶鍒犻櫎銆佸凡鏇村悕鎴栨殏鏃朵笉鍙敤銆
Type isolatie: FEP, PFA, PTFE, ETFE
Markeren:

Rated Voltage AC 600V FEP Insulated Wire

,

Oil Resistant FEP Cable

,

Strong Acid Resistant FEP Electric Wire
Basis informatie
Plaats van herkomst: Hunan, China
Merknaam: Sanco cable
Modelnummer: AF-200-serie
Betalen & Verzenden Algemene voorwaarden
Productomschrijving
FEP Insulated High Temp Electric Cable Wire
Applications
FEP wire features excellent corrosion resistance, oil resistance, strong acid/alkali resistance, and oxidation resistance. It offers superior electrical insulation performance with high voltage resistance, low frequency loss, moisture resistance, and insulation stability. The wire is fire-resistant, aging-resistant, and has a long service life.
Electronic Industry: Temperature compensation wire, low/high temperature heating wire, aging-resistant wire, and flame-retardant wire.
Household Appliances: Internal wiring for air conditioners, microwave ovens, electronic sterilizers, rice cookers, electric kettles, heaters, ovens, frying pans, and lighting fixtures.
Product Features
  • Wear and scratch resistant
  • Easy to strip
  • High and low temperature resistant (-65°C to +200°C)
  • Anti-aging and corrosion resistant
  • Electromagnetic interference resistant
Cable Structure
Insulation FEP, PFA, PTFE, ETFE
Number of Cores Single Core, 2 Cores, 3 Cores, 4 Cores, 5 Cores
Size 0.05mm² to 8mm²
Conductor Type Solid core or stranded
Conductor Materials Silver-plated copper or tinned copper wire
Shielding Tinned copper wire weave shielded
Temperature Range -65°C to +200°C
Rated Voltage 600V or below
Color Multiple standard colors available
FEP Insulated Wire with Rated Voltage AC 600V Oil Resistant and Strong Acid Resistant Properties 0
Product Types
Type Name
AF-200 Silver Plated Copper Core FEP Insulation Install Wire
AF-200-1 Tin Plated Copper Core FEP Insulation Install Wire
AFP-200 Tin/Silver Plated Copper Core FEP Insulation Shield Install Wire
AFS-200 Tin/Silver Plated Copper Core FEP Insulation Stranded Install Wire
AFSP-200 Tin/Silver Plated Copper Core FEP Insulation Stranded Shield Install Wire
Technical Specifications
Wire Gauge Cross-section Area Conductor Structure Max. OD of Cable
36AWG 0.013mm² 7/0.05mm 0.65-1.3mm
32AWG 0.035mm² 7/0.08mm 0.75-1.4mm
30AWG 0.05mm² 7/0.10mm 0.85-1.6mm
28AWG 0.07mm² 7/0.12mm 0.9-1.65mm
26AWG 0.14mm² 7/0.16mm 1.1-1.95mm
24AWG 0.2mm² 19/0.12mm 1.2-1.98mm
22AWG 0.35/0.40mm² 19/0.16mm 1.4-2.2mm
20AWG 0.5mm² 19/0.18mm 1.6-2.4mm
18AWG 1mm² 19/0.26mm 2-2.9mm
16AWG 1.2mm² 19/0.28mm 2.2-3.1mm
14AWG 2mm² 19/0.37mm 2.7-3.6mm
12AWG 3mm² 37/0.32mm 3.6-4.6mm
10AWG 5mm² 37/0.41mm 4.5-5.6mm
8AWG 8mm² 133/0.28mm 6-7.3mm
Note: Specifications and core numbers can be customized beyond these standard options.
FEP Insulated Wire with Rated Voltage AC 600V Oil Resistant and Strong Acid Resistant Properties 1 FEP Insulated Wire with Rated Voltage AC 600V Oil Resistant and Strong Acid Resistant Properties 2
label:

Enige Kernfep Geïsoleerde Draad

Ingeblikte FEP Geïsoleerde Draad

high temperaturefep Geïsoleerde Draad
